The way to wire a QR code reader w/ Diagram

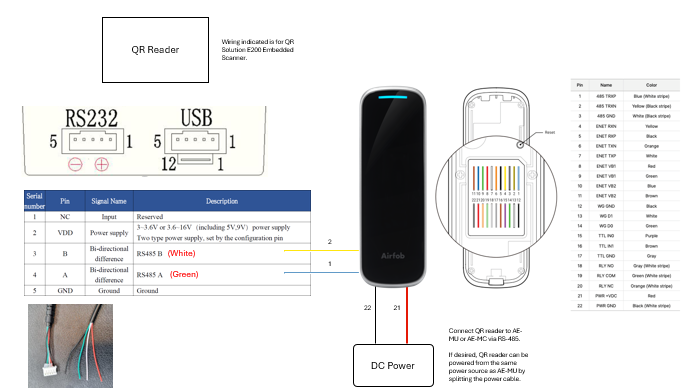

Airfob Space supports a variety of QR code readers, which can be connected to readers including the Airfob Edge Reader, XPass-2, and X-Station 2 using the RS-485 cables on the back of the reader. Here is a wiring diagram for reference.

​
