Door & Door Group
Door represents the physical entry points or access points in a building. Each door can have one or more devices installed on it.
When you register an Airfob device installed in your space on your site, you can optionally create a door. Now you can manage the created door or add new ones directly from the Access Point menu in the Airfob Pro app.
Newly registered devices need to upgrade to the FW as latest version from the Registered Device menu.
Before setting the Access Levels, you need to add all the doors where the Airfob devices installed.
Click the Door menu button that appears when you touch the Access Points tab at the bottom of the Airfob Pro app.
A list of registered doors will be displayed, where you can see the name of the door / the entry device installed on the door / the exit device installed on the door, and go to the door group menu.
How to create a new door
If you didn't create a door with your device when you registered it, or if you need to add a door for other reasons, please refer to the steps and images below.
1. Tap the Access points at the bottom of the Airfob Pro app.
2. Select Door button which is the first one.
3. Click the + icon in the top right corner of the screen to display a list of doors.
4. You will be taken to the Add door menu. Follow the description below to fill in the information for each entry. (The information required is the same as in the Airfob Pro portal).
Door name*: Name of the door in the space (17th floor office door, 10th floor break room door, etc.)
Description: Enter a description if needed.
Entry device: Select the device installed on the outside of the door.
Exit Device: Select the device installed on the inside of the door.
※ To select the entry and exit device, those must be properly connected to a power source and registered on your site.
SIO2, Door relay, Relay ignoring door sensor, Exit button, Door sensor: Input information may vary depending on the installation environment. Please consult your Airfob supplier.
SIO2 : If you installed an additional SIO2 device.Door relay : Select the device that the relay is connected to.Relay ignoring door sensor: In most cases, the relay should be enabled.Exit Button: If you installed an exit button, select the device it is connected to.Door sensor: Select the input port connected with the door sensor.
Open Time: Manually enter the amount of time the door stays open.
5. Click the Save button to complete the door creation.
Modifying (+ deleting) a registered door

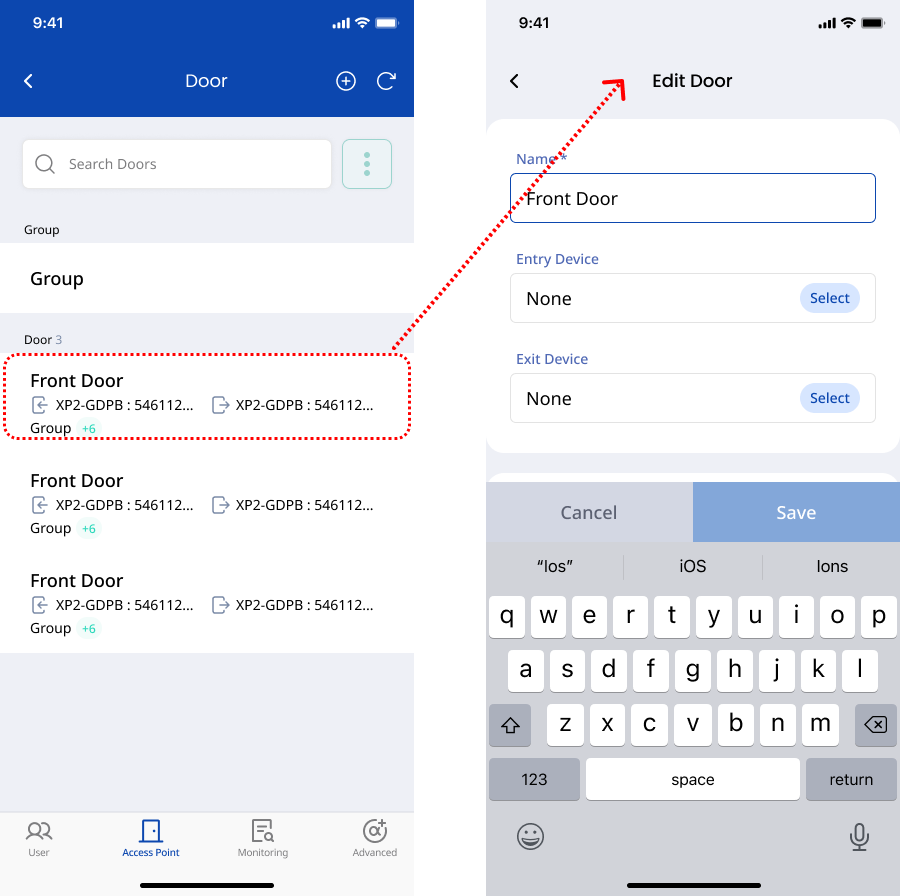

1. To edit a door information
In the door list, tap the door that you want to modify information. You will be taken to the door information screen, where you can see all the information entered.
Click the pencil icon in the top right corner of the door information screen.

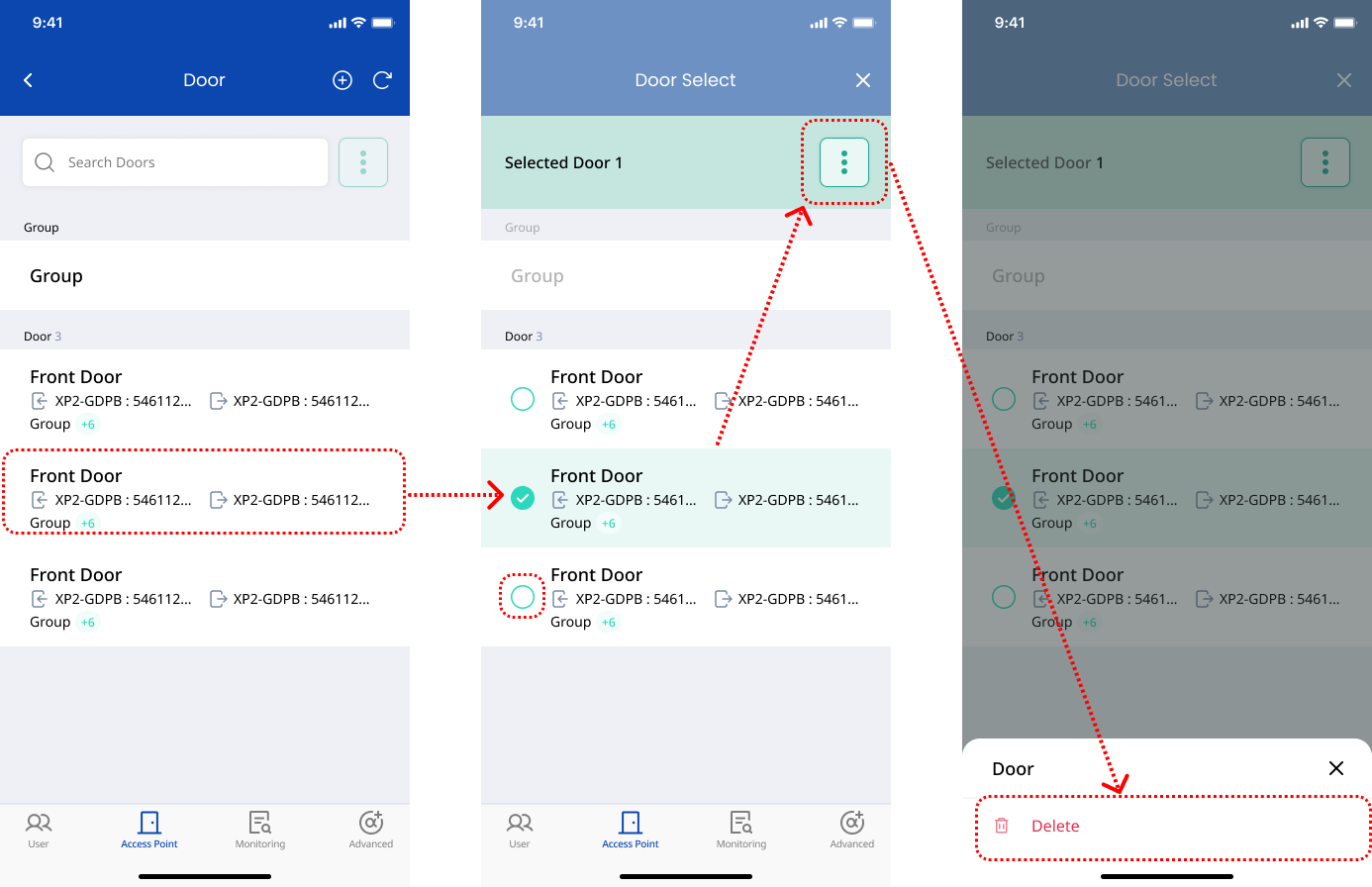

2. Delete a door
1. Press and hold the door you want to delete from the list.
2. The background color turns green and a tick appears on the left.
3. To delete multiple doors at the same time, briefly touch other doors.
4, Click the ⁝ icon on the top right, a delete button will appear below.

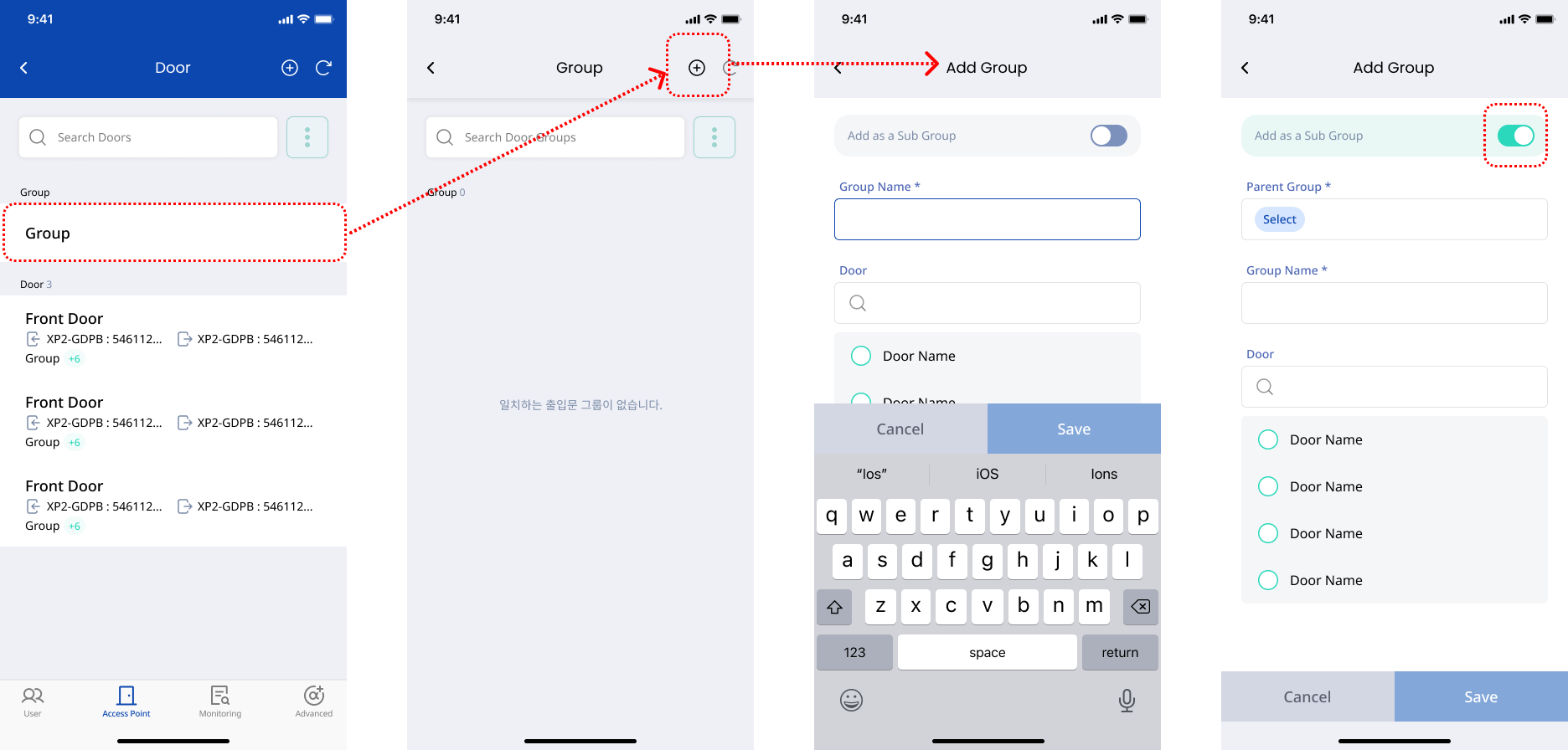

Door groups
On sites where multiple doors have been created, you can use the Door Group feature to categorise and easily manage your doors based on their purpose or location.
Door groups are optional, so you can add them as needed, and you can do so in both the Airfob Pro app and the portal. If you're using the Airfob Pro app, see the steps below.
1. Select the Door menu button from the Access Points.
2. Select Groups from the Door menu, which will take you to the Groups screen.
3. Locate the + icon in the top right corner.
4. Click the icon to display the Add Door Group screen.
5. Enter the information for each item, referring to the descriptions below.
Group name: Name of the door group (feel free to create one based on location, purpose, etc.)
Doors: Select the doors you want to include in the group from those already created.
6. If you need subgroups, click the + icon again.
Add as an Sub Group: Activate the toggle to create a subgroup to subdivide under the parent group.
Parent group: Select an already created parent group.
Group name: Enter a name for the subgroup.
Door: Select the doors that will be included in the subgroup.
7. Click the Save button and the door group will be created.
